Maritime VSAT Systems
High-performance systems that operate on the latest high-throughput Ku and Ka-band satellite networks. For business applications, vessel operations, and crew or guest communications. And fully integrated, digitalized operations between vessels and shore.

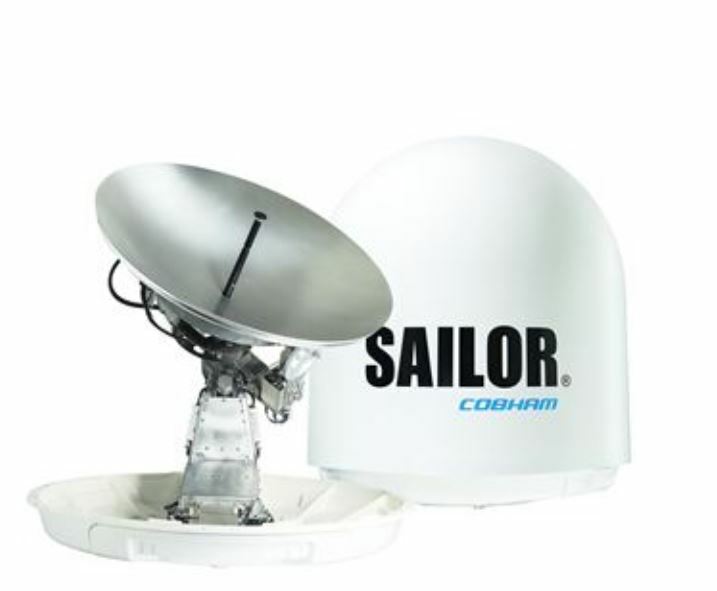

Cobham SAILOR 100 GX
Stabilized Ka-band GX system for global high-speed broadband
Three-axis stabilized one-meter antenna that combines quick deployment, ease of use, and reliable operation for accessing the full range of services on Inmarsat Global Xpress. Supplied ready for quick installation, with only one cable between the antenna and below deck equipment, automatic azimuth and cable calibration, and one-touch commissioning. Advanced tracking receiver enables rapid satellite acquisition at start up and re-acquisition after bad weather or poor signal strength.
Extremely rugged design that meets military standards for shock and vibration, with support for remote monitoring and maintenance. Supplied with the SAILOR GX Modem Unit, which also works with SAILOR 500/250 FleetBroadband to form a complete Global Xpress solution.
Contact [email protected] for more information about this product.

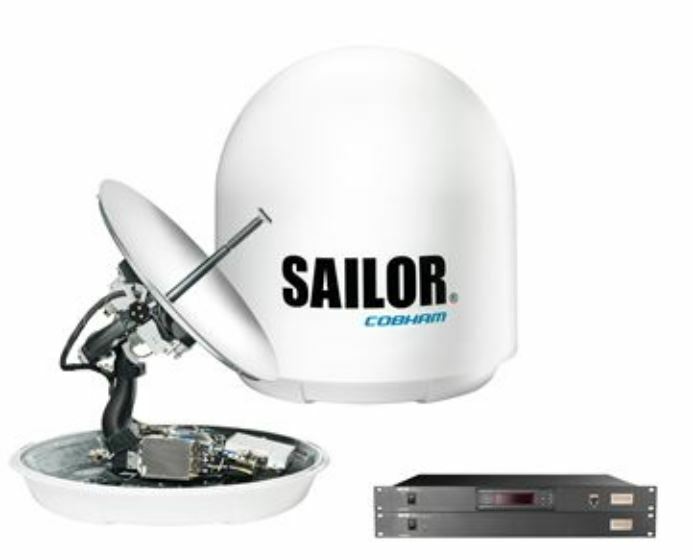

Cobham SAILOR 60 GX
Compact, stabilized Ka-band GX system for global high-speed broadband
Lightweight, three-axis stabilized 60-cm antenna with fast tracking for better dynamic performance in roll, pitch, and yaw. Makes it possible for even smaller vessels more affected by rough seas to maintain a link in all conditions. Supplied ready for quick, carry-aboard installation, with only one cable between the antenna and below deck equipment, automatic azimuth and cable calibration, and one-touch commissioning. Dynamic motor brakes ensure antenna is kept in balance at sea, during transport, and no power. Rugged design to withstand the toughest conditions, with support for remote monitoring and maintenance.
Contact [email protected] for more information about this product.

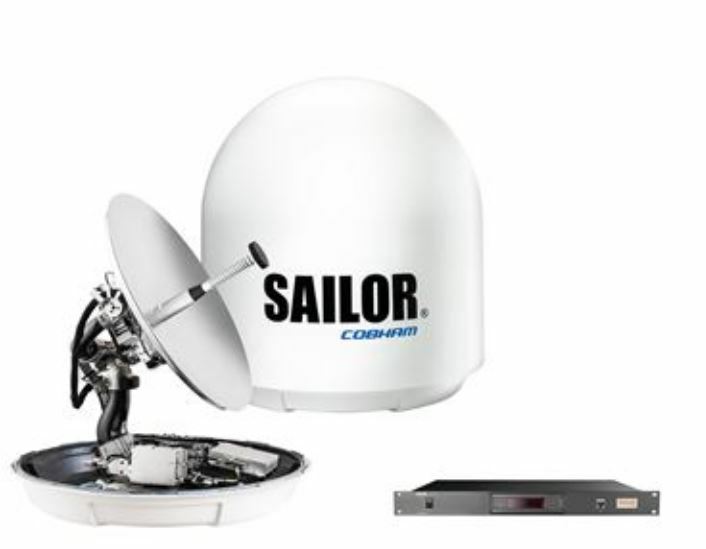

Cobham SAILOR 600 VSAT Ku
Compact Ku-band system for high-throughput services
Bringing maritime broadband to a wider range of vessels, this lightweight, 60-cm antenna enables high-throughput services at the highest reliability and link stability on Ku-band networks, including Intelsat EPIC.
Designed for quick, cost-effective deployment with lower shipping fees, carry-aboard installation, a single cable between the antenna and below deck unit, and automatic azimuth calibration. Dynamic motor brakes ensure antenna is kept in balance at sea, during transport, and no power. Software-controlled platform to support remote monitoring and diagnostics. When high service availability is critical, two antennas can be cost-effectively deployed to overcome signal blocking, with only one modem required for both antennas.
Contact [email protected] for more information about this product.

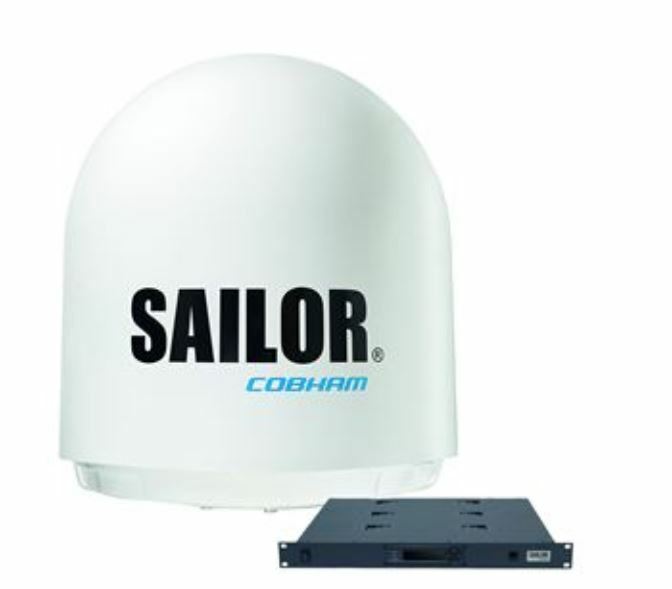

Cobham SAILOR 900 VSAT Ku
Flexible stabilized Ku-band system for high-throughput services
Future-proof, three-axis, stabilized one-meter antenna that operates with any leading Ku-band platform. High-power 20W variants offer more uplink bandwidth, even in regions with high temperatures. Conversion to Ka-band operation possible for use with new high throughput services as they come on stream. Alternatively, optimized Ku-band antennas are available.
Designed for quick, cost-effective deployment, the antenna is shipped fully balanced and configured, with only one cable between the antenna and below deck. When high service availability is critical, two antennas can be cost-effectively deployed to overcome signal blocking, with only one modem required for both antennas.
Contact [email protected] for more information about this product.

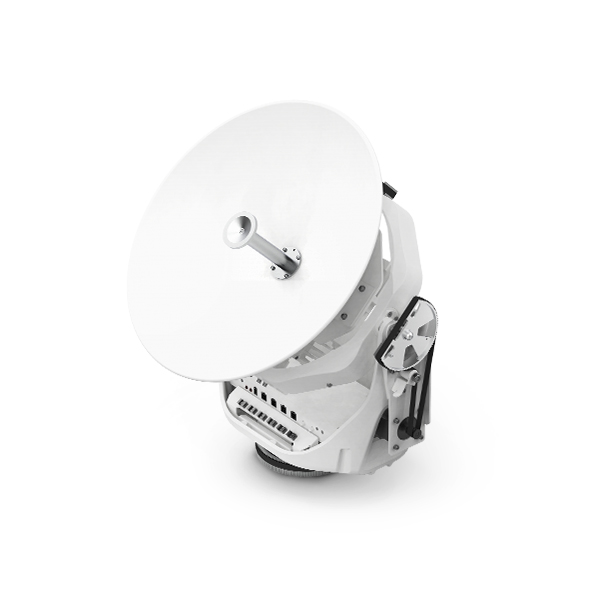

Intellian v45C
Compact Ku-band system for high-throughput services
Affordable, lightweight 45-cm system that delivers enhanced connectivity for smaller vessels over HTS and wide beam Ku-band satellites. Quick and simple to install with only one coaxial cable and no need to access inside the radome. Easy to manage and control via the AptusNX web interface.
Contact [email protected] for more information about this product.

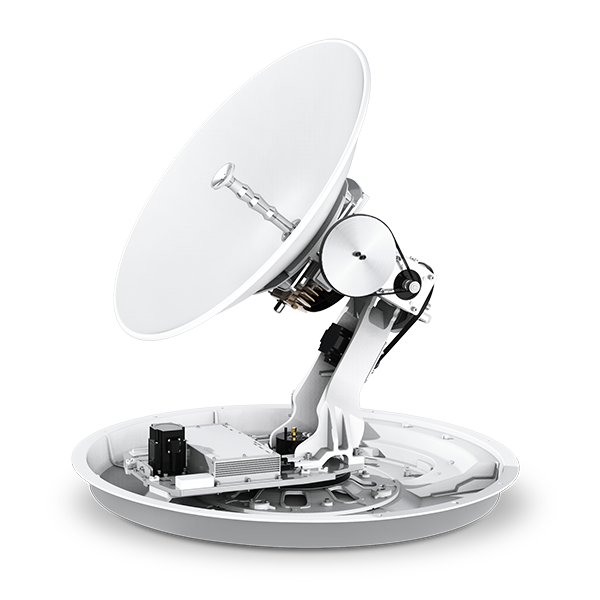

Intellian v60E
Compact stabilized Ku-band system for high-throughput services
Affordable, lightweight 65-cm system for smaller vessels that delivers higher performance with enhanced tracking precision point over HTS Ku-band satellites. Quick and simple to install with pre-fitted lifting straps, only one coaxial cable, and no need to access inside the radome. Easy to manage and control via the AptusNX web interface.
Contact [email protected] for more information about this product.

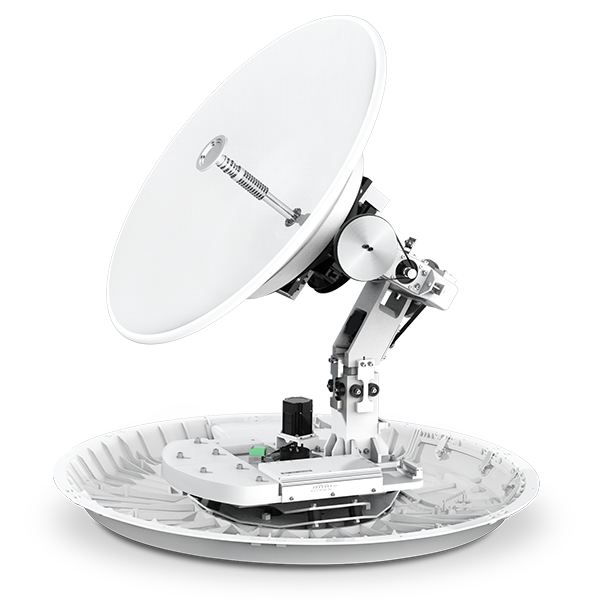

Intellian v85NX
Compact, convertible Ku-to Ka-band system
Compact 85-cm system suitable for smaller vessels with a future-proof Ku- to Ka-band convertible antenna to support new constellations. The RF assembly and feed can be changed while still using the dual-band optimized reflector and radome. Several BUC power options up to 25W are available for wider operational range.
Quick and simple to install with pre-fitted lifting straps, only one coaxial cable, dynamic motor braking, and no need to access inside the radome. Easy to manage and control via the AptusNX web interface. Modular design with reduced number of spare parts for easier maintenance and lower total cost of ownership. Enhanced diagnostics capabilities with alerts to indicate when preventative maintenance is required.
Contact [email protected] for more information about this product.

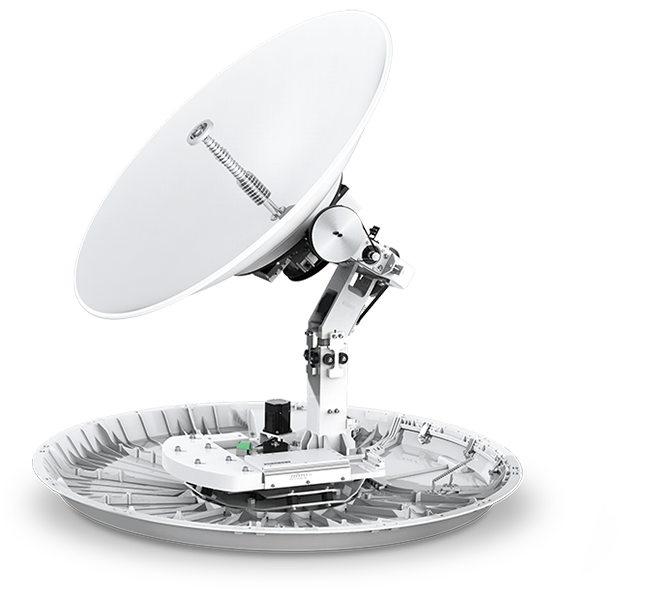

Intellian v100NX
Convertible Ku-Ka Dual band GEO/MEO/LEO system
One meter system with a flexible Ku- to Ka-band convertible antenna to support future 2.5GHz Ka- wideband networks. RF assembly and feed can be changed while still using the dual-band optimized reflector and radome. Platform enables accurate satellite tracking on GEO/MEO/LEO constellations for flexible operation on all future networks. Several BUC power options are available for wider operational range, up to 25W for Ku-band and up to 10W for Ka-band.
Simple to install with pre-fitted lifting straps, only one coaxial cable, dynamic motor braking, and no need to access inside the radome. Easy to manage and control via the AptusNX web interface. Modular design with reduced number of spare parts for easier maintenance and lower total cost of ownership. Enhanced diagnostics capabilities with alerts to indicate when preventative maintenance is required.
Contact [email protected] for more information about this product.

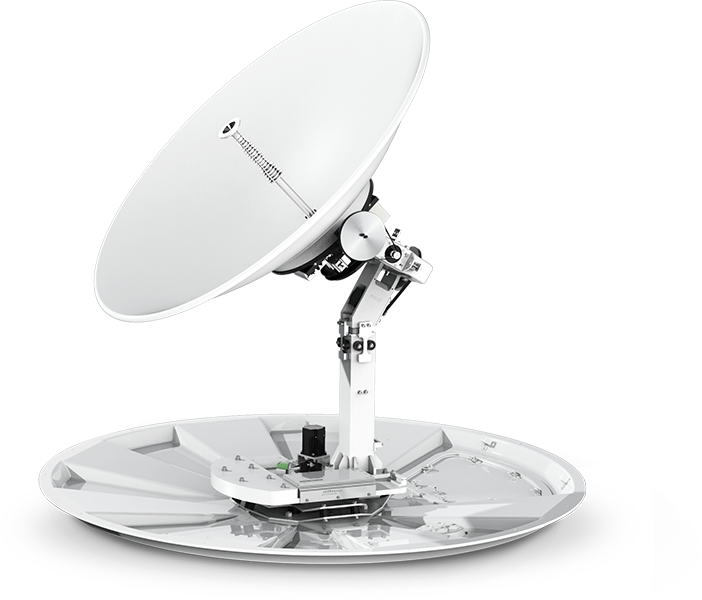

Intellian v130NX
Convertible Ku-Ka Dual band GEO/MEO/LEO system
1.25-meter system with a flexible Ku- to Ka-band convertible antenna to support future 2.5GHz Ka- wideband networks. RF assembly and feed can be changed while still using the dual-band optimized reflector and radome. Platform enables accurate satellite tracking on GEO/MEO/LEO constellations for flexible operation on all future networks. Several BUC power options are available up to 40W for maximum throughput and higher data rates.
Simple to install with pre-fitted lifting straps, only one coaxial cable, dynamic motor braking, and no need to access inside the radome. Easy to manage and control via the AptusNX web interface. Modular design with reduced number of spare parts for easier maintenance and lower total cost of ownership. Enhanced diagnostics capabilities with alerts to indicate when preventative maintenance is required.
Contact [email protected] for more information about this product.

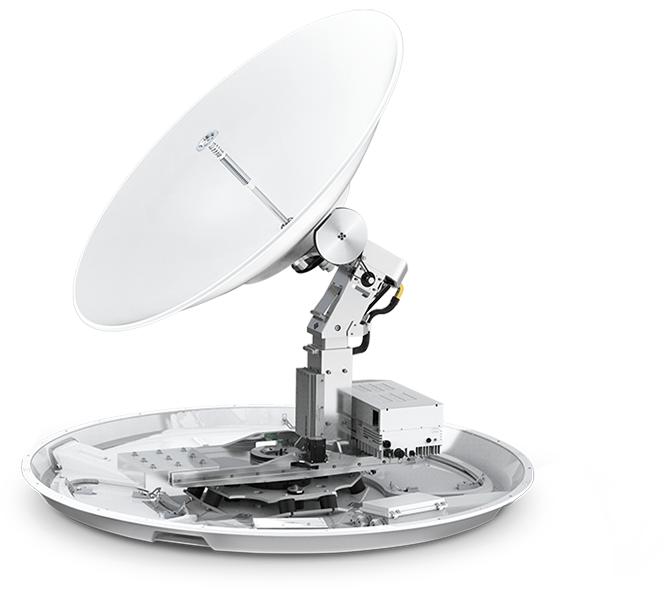

Intellian v150NX
Convertible Ku-Ka Dual band GEO/MEO/LEO system
1.5-meter system with a flexible Ku- to Ka-band convertible antenna to support future 2.5GHz Ka- wideband networks. RF assembly and feed can be changed while still using the dual-band optimized reflector and radome. Platform enables accurate satellite tracking on GEO/MEO/LEO constellations for flexible operation on all future networks. Supports up to 200W Ku-band BUC or 100 wideband Ka with expected throughputs of 600+ Mbps downlink and 300+ Mbps uplink. Air conditioner base frame option available for cooling, heating, or both functions combined.
Simple to install with pre-fitted lifting straps, and only one fiber optic cable which provides minimal signal loss and higher throughput regardless of run length. Easy to manage and control via the AptusNX web interface. Modular design with reduced number of spare parts for easier maintenance and lower total cost of ownership. Enhanced diagnostics capabilities with alerts to indicate when preventative maintenance is required.
Contact [email protected] for more information about this product.
