Vehicular Terminals
For voice, email, internet, video streaming, and VPN access in vehicles while moving or stationary. Ideal for government, first responders, humanitarian operations, broadcast media, and remote workers in the energy, utility, telecom, and forestry sectors in challenging environments or any location where terrestrial services are not reliable or not preferred.
Cobham EXPLORER 325
Vehicular BGAN system for global mobile broadband
Compact, lightweight system for instant communications on the move using the L-band BGAN service from Inmarsat. Consists of three fully integrated units – a transceiver, an IP handset, and a roof-mountable antenna with magnetic mounts. Easy to set up and connect a laptop for simultaneous voice and broadband access up to 384 kbps, with streaming IP up to 128 kbps.
Hughes 9410
FLEXIBLE BGAN TERMINAL FOR GLOBAL MOBILE BROADBAND
Rugged, budget-friendly IP data device that can be used for primary communications or as an LTE failover backup, with or without human interaction. Suitable for a broad range of use-cases, including government, environmental, hazardous materials, mobile healthcare, electric utilities, oil and gas, forestry and telecommunications. Operates with a BGAN or BGAN M2M SIM, allowing the best airtime plan to be selected for the application.
Easy to install and supports industry standard end-to-end security solutions. Delivers up to 464 kbps standard IP and 128 kbps streaming IP when stopped or on-the-move, with reliable performance even at low elevations. Offers selectable, dedicated Quality of Service levels when using a BGAN SIM. Supports BGAN SMS and remote management. GPS tracking is optional. Two models are available depending on requirements for Ethernet and WiFi interfaces.
Hughes 9450-C10
Vehicular BGAN terminal for global mobile broadband
Competitively priced terminal for use on the L-band BGAN service from Inmarsat. Enables simultaneous voice and broadband up to 492 kbps, with streaming IP up to 256 kbps and selectable quality of service. Can be permanently mounted or an optional magnetic roof mount allows for rapid installation and removal. Supports simultaneous use of Ethernet and Wi-Fi for multi-user IP data, plus ISDN or RJ11 for voice.

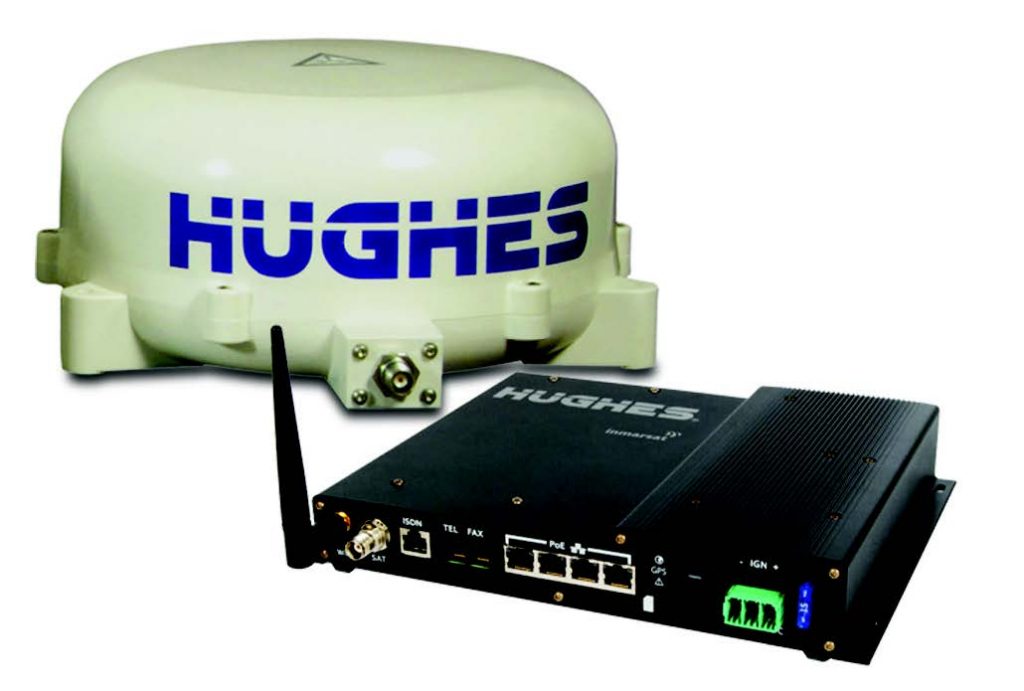

Hughes 9450-C11
Vehicular BGAN terminal for global mobile broadband
Lightweight, low-cost terminal for use on Inmarsat’s BGAN service. Enables simultaneous voice and broadband up to 464 kbps, with streaming IP up to 128 kbps and selectable quality of service. Can be permanently mounted or an optional magnetic roof mount allows for rapid installation and removal. Supports simultaneous use of Ethernet and Wi-Fi for multi-user IP data, plus ISDN or RJ11 for voice. Web-based user interface is accessible via Wi-Fi-enabled smartphones.
Kymeta Osprey u8
Flat panel auto-acquire Ku-band terminal
Low profile, low-visibility antenna in military color with a rugged design to military-grade specifications for operations in extreme land mobile and maritime conditions. Supports always-on broadband communications over both satellite and cellular networks for communications-on-the-move (COTM), networks-on-the-move (NOTM), and communications-on-the-pause (COTP). Proven to maintain lock in high-speed off-road conditions and on speed boats.
Easily mounted on a wide arrange of military vehicles and vessels. Flexible operation through embedded modem or external modems, with a modular equipment bay that enables users to field install mission-specific kits. Can be expanded from GEO to dual GEO/LEO operation when new LEO constellations are available to provide multi-orbit / multi-network mission capability.
Contact the SD team to find out more.

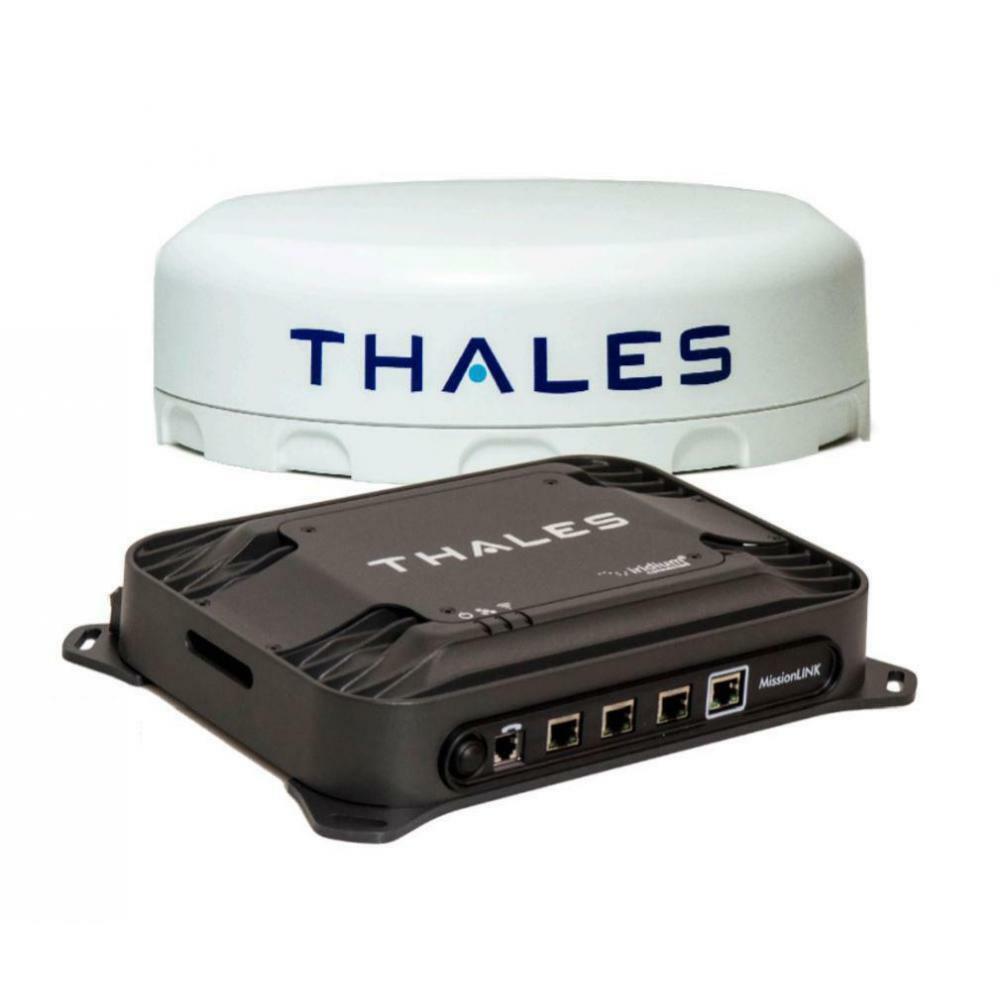

Thales MissionLink 700
Iridium Certus terminal for fully global mobile broadband
Compact, robust, and adaptable terminal for use over the Iridium Certus network. Can be flexibly deployed on a vehicle for communications on the move or at a temporary or permanent location for on-the-pause or fixed communications. Delivers standard IP up to 704 kbps download and 352 kbps upload. Also supports location-based services and real-time emergency alerts. Easily operated with a smartphone, tablet, or computer. Embedded Wi-Fi access point enables multi-user access that supports up to three concurrent devices. Also interoperable with push-to-talk radios. Easily integrated with cellular networks with a built-in preferred routing switch.

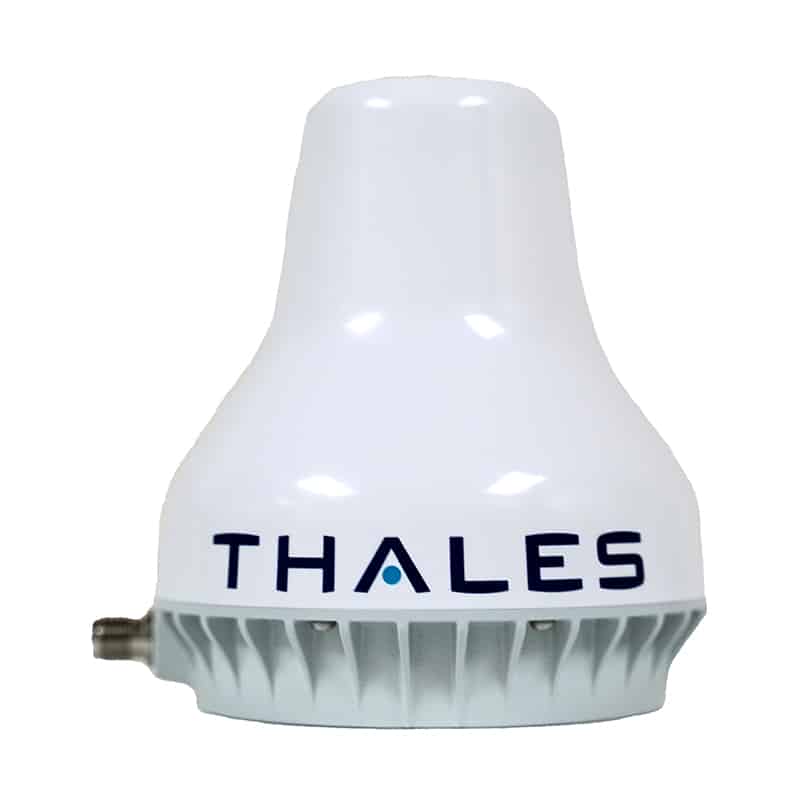

Thales MissionLink 200
Iridium Certus terminal for fully global mobile broadband
Small, military-grade, adaptable terminal for use over the Iridium Certus network. Can be flexibly deployed on a vehicle for communications on the move or at a temporary or permanent location for on-the-pause or fixed communications. Delivers standard IP up to 176 kbps download/upload. Supports real-time emergency alerts and distress notifications, two dedicated voice channels, location tracking, and telemedicine capabilities for safety services. Embedded Wi-Fi enables multi-user access. Also interoperable with push-to-talk radios. Easily integrated with cellular networks with a built-in preferred routing switch.
